Product information

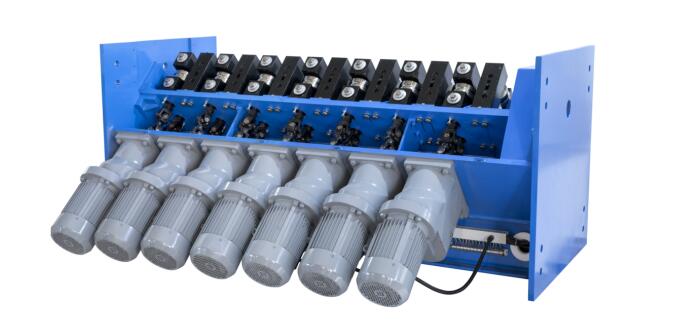

Mineral cable pipe shrinking machine

This machine, no matter from the structure, body, universal shaft, bearing, gear box, motor power, etc., are bolded, increased; Speed: 2-15 meters per minute, mainly for large pipe diameter, density, long pipe and the design of the transmission structure; Reduction gearbox adopts multiple sets of gears with large gross number, which are connected to the motor, and is formed into one set of gear reduction motors with large torsional distance, which can avoid the trouble that the transmission force is not enough or the motor is easily damaged due to the shrinkage of large tubes, high density and long tubes. In the middle, a reinforced double universal shaft is used to connect the motor with the rolling roller shaft, so that the machine can drive in parallel and the torsion distance is increased, thus reducing the direct stress between the motor and the rolling roller shaft and protecting the reduction motor.
A;  Shrinkable pipe diameter range: 8--45(mm);
B;  Shrinkable pipe length: 150-- infinite length (mm)
C;  Machine structure classification: integral casting, split combination
D;  Group number; Groups 8, 10, 12, 14, 16, 18
E;  Die material: alloy, high speed steel, die steel
F;  Shrinkage speed: from 2-15 (m/min)

G;  Volume product (length * width * height) (mm)
